JBD (Jiabaida) 7-24S Smart BMS 0-80A OCP for Li-ion & LiFePO4, With Balance Leads, Bluetooth, and Battery Heating Option

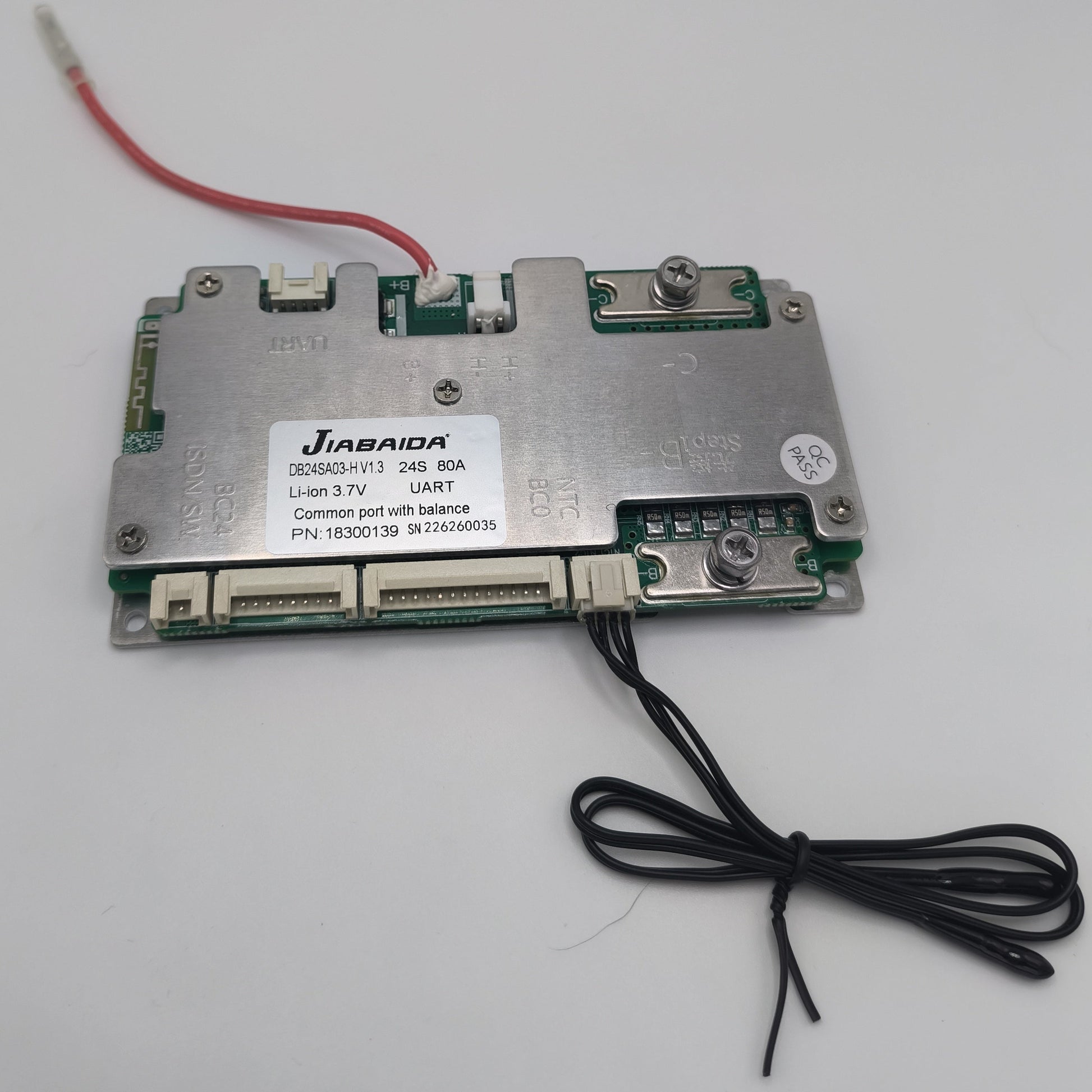

The JBD (Jiabaida) 7-24S (20s max Li-ion) Smart BMS, Model DB24SA03-H is the go-to choice for builders and enthusiasts seeking reliable well supported battery management without breaking the bank. Known throughout the community for exceptional value, this unit delivers professional-grade performance at an affordable price point. JBD BMS's are available with Comprehensive documentation and have active community support that make setup and troubleshooting straightforward. Whether you're configuring a 7S, all the way up to a 24S (LiFePO4 only) pack, The built in Bluetooth and accompanying smartphone app will have you up and running in no time. With nearly every setting from current limits, to cell count, to balance modes, to calibration programable via the Smartphone or PC App, you can configure these BMS's for any pack you could possibly want. This BMS also features an optional ability to heat LiFePO4 battery packs for safe cold whether charging.

We recommend using the default "JBD BMS" app for new users but you can also use the "Overkill Solar" app for more advanced users.

Specifications:

• Maximum continuous current- 80A DC
• 1s Peak Current limit-150A DC
• Maximum cell count (LiFePO4)-24S
• Maximum cell count (Li-ion)-20S
• Minimum cell count-7s

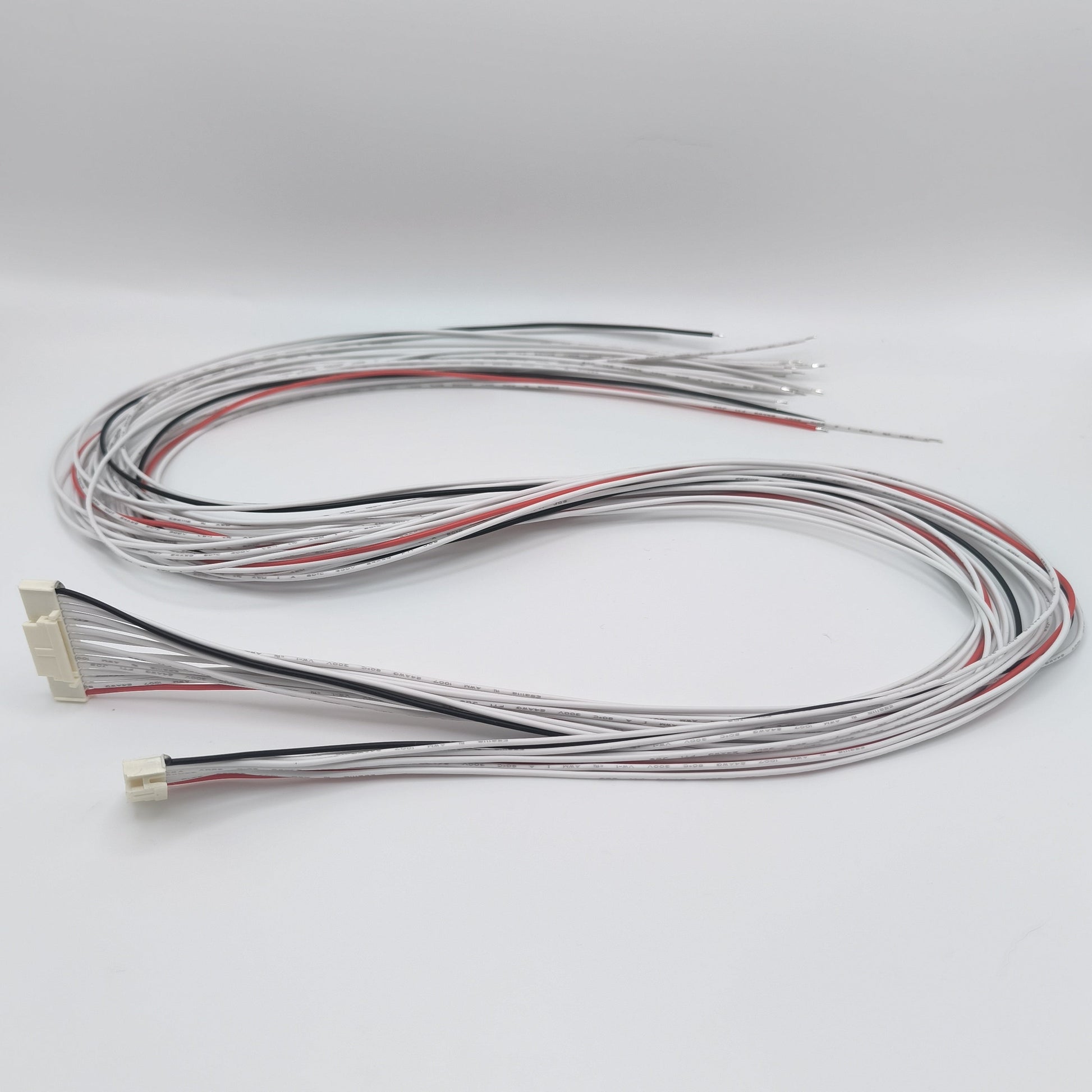

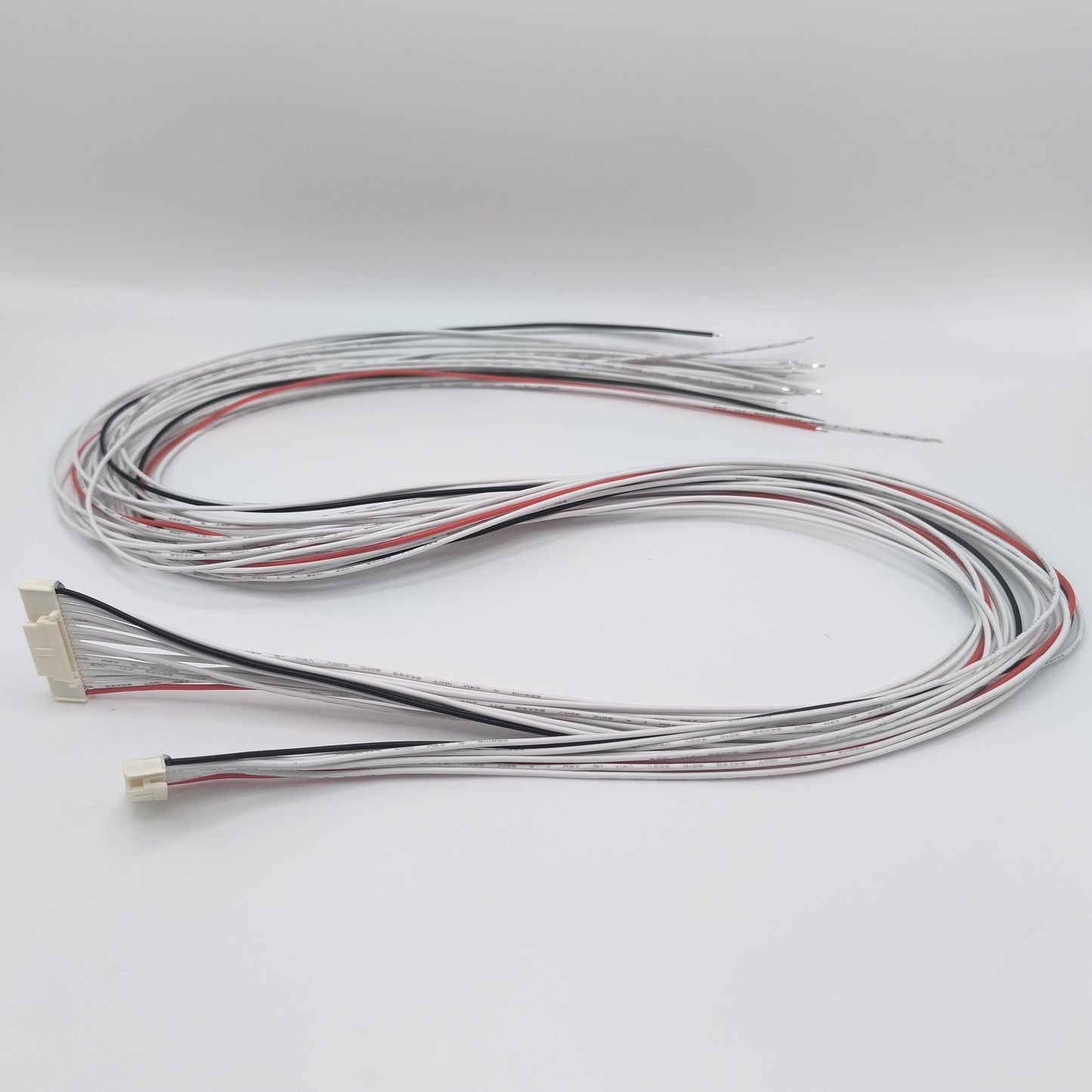

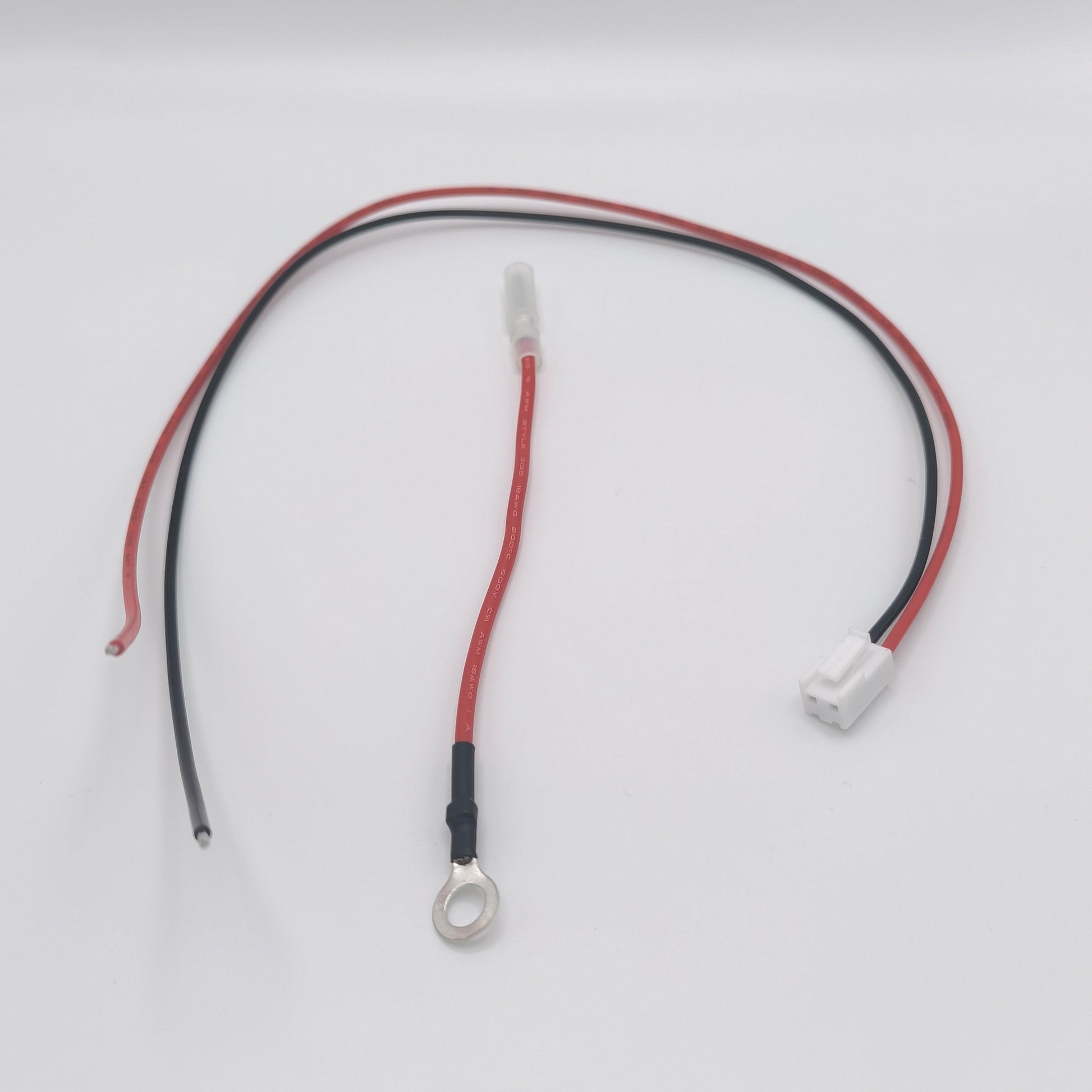

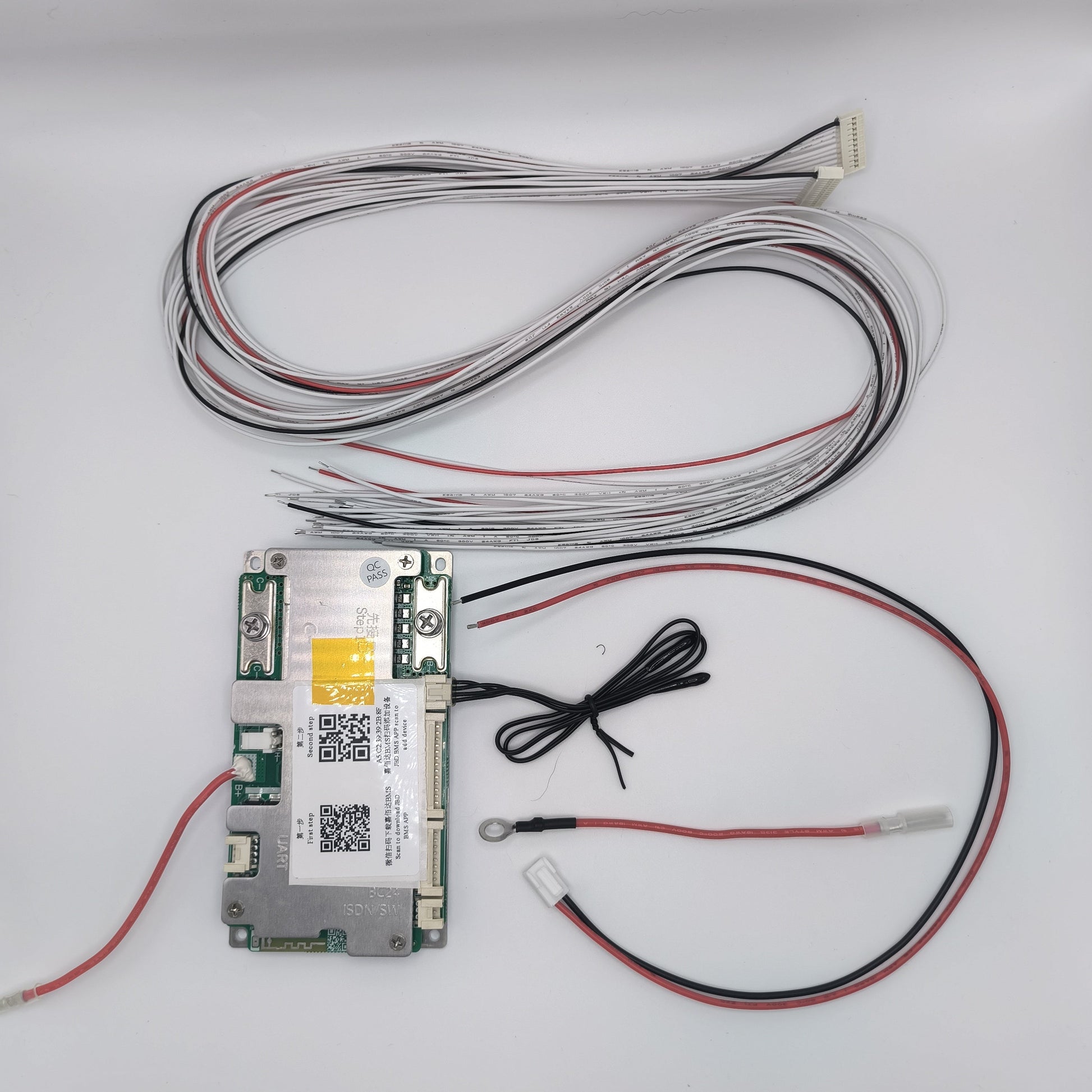

• Balance Leads, 2 NTC temp sensors, and heater addon cable included

For more information, Manuals and Software, visit the manufacturers website here
